AV mixers, which play a core role in audio-visual production is the A-PRO-4 that supports information sharing in real time, such as live video streaming via the internet. Particularly, the A-PRO-4 has professional-grade SDI, consumer-grade HDMI and analog video inputs, and one of the inputs has a built-in scaler that allows users to connect devices without worrying about resolutions or frame rates. For an external sound source, the unit has one stereo input available for adding a commentary or background music.
A-PRO-4 Main Specifications
[ Input Connectors ]
SDI IN
| Connector | BNC type x 2 |
|---|---|
| Signal Standards | SMPTE ST2081 SMPTE ST424 (SMPTE ST425-AB) SMPTE ST292 SMPTE ST259-C |
| Video Format | 2048x1080 / 60p / 59.94p / 50p / 48p / 47.95p / 30p / 29.97p / 25p / 24p / 23.98p / 30PsF / 29.97PsF / 25PsF / 24PsF / 23.98PsF (Conforms to SMPTE ST2048) 1920x1080 / 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p / 23.98p / 60i / 59.94i / 50i / 30PsF / 29.97PsF / 25PsF / 24PsF / 23.98PsF (Conforms to SMPTE ST274) 1280x720 / 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p / 23.98p (Conforms to SMPTE ST296) 720x480 / 59.94i, 720x576 / 50i (Conforms to ITU-R BT.656-3 / 5) |
| Color Format | 10 bits YCC4:2:2, 12 bits YCC / RGB4:4:4, 10 bits RGBA / YCCA4:4:4:4, 12 bits YCCA4:2:2:4 |
| Audio Format | Linear PCM, 24 / 20 bits, 48 kHz, 16 ch (Conforms to SMPTE ST299, ST272-C) |
HDMI IN (IN3)
| Connector | Type A (19 pins) x 1 |
|---|---|
| Signal Standards | HDMI1.4 |
| Video Format | 2048x1080 / 60p / 59.94p / 50p / 48p / 47.95p / 30p / 29.97p / 25p / 24p / 23.98p (SMPTE ST2048 Timings) 1920x1080 / 60p / 59.94p / 50p / 60i / 59.94i / 50i / 30p / 29.97p / 25p / 24p / 23.98p, 1280x720 / 60p / 59.94p / 50p, 720x480 / 59.94p, 720x576 / 50p, 720(1440)x480 / 59.94i, 720(1440)x576 / 50i (Conforms to CEA-861-F) |
| Color Format | 10 / 12 bits YCC4:2:2, 8 / 10 / 12 bits YCC / RGB4:4:4 |
| Audio Format | Linear PCM, 16--24 bits, 32--48 kHz, 2--8 ch |
HDMI IN (IN4)
| Connector | Type A (19 pins) x 1 |
|---|---|
| Signal Standards | HDMI1.4 |
| Video Format | 2048x1080 / 60p / 59.94p / 50p / 48p / 47.95p / 30p / 29.97p / 25p / 24p / 23.98p (SMPTE ST2048 Timings) 1920x1080 / 60p / 59.94p / 50p / 60i / 59.94i / 50i / 30p / 29.97p / 25p / 24p / 23.98p, 1280x720 / 60p / 59.94p / 50p, 720x480 / 59.94p, 720x576 / 50p, 720(1440)x480 / 59.94i, 720(1440)x576 / 50i (Conforms to CEA-861-F) 640x480 / 60 / 72 / 75 / 85, 800x600 / 56 / 60 / 72 / 75 / 85, 1024x768 / 60 / 70 / 75 / 85, 1152x864 / 75, 1280x768 / 60 / 75 / 85, 1280x800 / 60 / 75 / 85, 1280x960 / 60 / 85, 1280x1024 / 60 / 75 / 85, 1360x768 / 60, 1400x1050 / 60 / 75, 1440x900 / 60 / 75 / 85, 1600x1200 / 60, 1680x1050 / 60, 1920x1200 / 60 Reduced Blanking (Conforms to VESA DMT) |
| Color Format | 10 / 12 bits YCC4:2:2, 8 / 10 / 12 bits YCC / RGB4:4:4 |
| Audio Format | Linear PCM, 16--24 bits, 32--48 kHz, 2--8 ch |
VIDEO IN
| Connector | BNC type x 1 |
|---|---|
| Signal Format | ITU-R BT.470-6 |
| Video Format | NTSC, NTSC-J, PAL |
REF IN
| Connector | BNC type x 1 |
|---|---|
| Signal Standards | B.B. (SMPTE ST318), Bi-Level (ITU-R BT.1358-1), HD Tri-Level (SMPTE ST274, ST296) |
| Signal Format | 1920x1080 / 59.94p / 50p / 59.94i / 50i (Conforms to SMPTE ST274) 1280x720 / 59.94p / 50p (Conforms to SMPTE ST296) 720x480 / 59.94p, 720x576 / 50p (Conforms to ITU-R BT.1358-1) 720x480 / 59.94i, 720x576 / 50i (Conforms to SMPTE ST318) |
AUDIO IN
| Connector | 1 / 4" TRS phone type (balanced) x 2 |
|---|---|
| Input Level | -30--+4 dBu |
| Maximum Input Level | +24 dBu |
| Impedance | 150 k / 600 ohms selectable |
[ Output Connectors ]
SDI OUT
| Connector | BNC type x 1 |
|---|---|
| Signal Standards | SMPTE ST2081 SMPTE ST424 (SMPTE ST425-AB) SMPTE ST292 SMPTE ST259-C |
| Video Format | 2048x1080 / 59.94p / 50p (Conforms to SMPTE ST2048) 1920x1080 / 59.94p / 50p / 59.94i / 50i (Conforms to SMPTE ST274) 1280x720 / 59.94p / 50p (Conforms to SMPTE ST296) 720x480 / 59.94i, 720x576 / 50i (Conforms to ITU-R BT.656-5) |
| Color Format | 10 bits YCC4:2:2, 12 bits YCC / RGB4:4:4 (Valid bits are 10 bits) |
| Audio Format | Linear PCM, 24 / 20 bits, 48 kHz, 2 ch (Conforms to SMPTE ST299, ST272-C) |
HDMI OUT
| Connector | Type A (19 pins) x 1 |
|---|---|
| Signal Standards | HDMI1.4 |
| Video Format | 2048x1080 / 59.94p / 50p (SMPTE ST2048 Timings) 1920x1080 / 59.94p / 50p / 59.94i / 50i, 1280x720 / 59.94p / 50p, 720(1440)x480 / 59.94i, 720(1440)x576 / 50i (Conforms to CEA-861-F) |
| Color Format | 10 bits YCC4:2:2, 8 / 10 bits YCC / RGB4:4:4 |
| Audio Format | Linear PCM, 24 bits, 48 kHz, 2 ch |
USB3.0 OUT
| Connector | USB Type B (Super Speed USB) x 1 |
|---|---|
| Standards | USB 3.0 Super Speed (SS) / USB 2.0 High Speed (HS) USB Video Class 1.1, USB Audio Class 1.0 |
| Video Format (SS) | 2048x1080 / 59.94p / 50p, 1920x1080 / 59.94p / 50p / 59.94i / 50i, 1280x720 / 59.94p / 50p, 720x480 / 59.94i, 720x576 / 50i |
| Video Format (HS) | 720x480 / 59.94i, 720x576 / 50i |
| Color Format | 8 bits YCC4:2:2 |
| Audio Format | Linear PCM, 16 bits, 48 kHz, 2 ch |
AUDIO OUT
| Connector | 1 / 4" TRS phone type (balanced) x 2 |
|---|---|
| Output Level | -20--+4 dBu |
| Maximum Output Level | +24 dBu |
| Minimun Load Impedance | 20k ohms |
PHONES OUT
| Connector | 1 / 4" TRS phone type (stereo) x 1 |
|---|
[ Processing ]
| Video Processing | 10 bits YCC4:4:4 |
|---|---|
| Audio Processing | 24 bits 48 kHz |
[ Other Connectors ]
USB2.0
| Connector | Micro USB Type B (Hi-Speed USB) x 1 |
|---|---|
| Standards | USB 2.0 High Speed (HS) |
LAN
| Connector | RJ45 |
|---|---|
| Standards | 10 / 100Base-T |
DC IN
| Power Voltage | 12--20 V |
|---|---|
| Power Consumption | 35 W |
[ Others ]
| Dimensions | 307 (W) ×246 (D) ×119 (H) mm 12-1 / 8 (W) x 9-11 / 16 (D) x 4-11 / 16 (H) inches |
|---|---|
| Weight | 2.9 kg (without AC adaptor & AC cord) 6 lbs 7 oz |
| Operation Temperature | +0--+40 degrees Celsius +41--+104 degrees Fahrenheit |
| Accessories | AC adaptor Electrical power cords x 5 (for Japan, North America, UK, EU and Australia) Startup Manual |
(0 dBu = 0.775 Vrms)
* In the interest of product improvement, the specifications and/or
appearance of this unit are subject to change without prior notice.
* In the interest of product improvement, the specifications and/or
appearance of this unit are subject to change without prior notice.

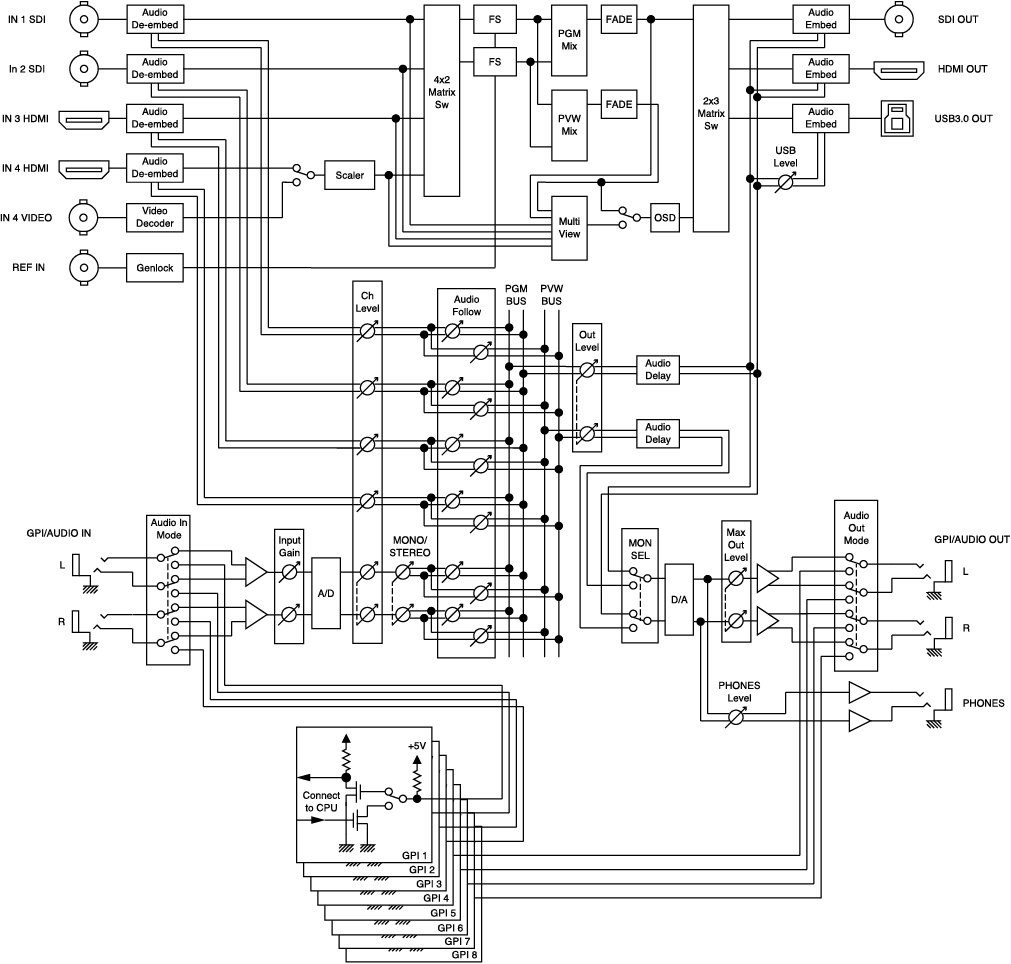

Block Diagram
*The multi-view feature will be supported in subsequent versions.

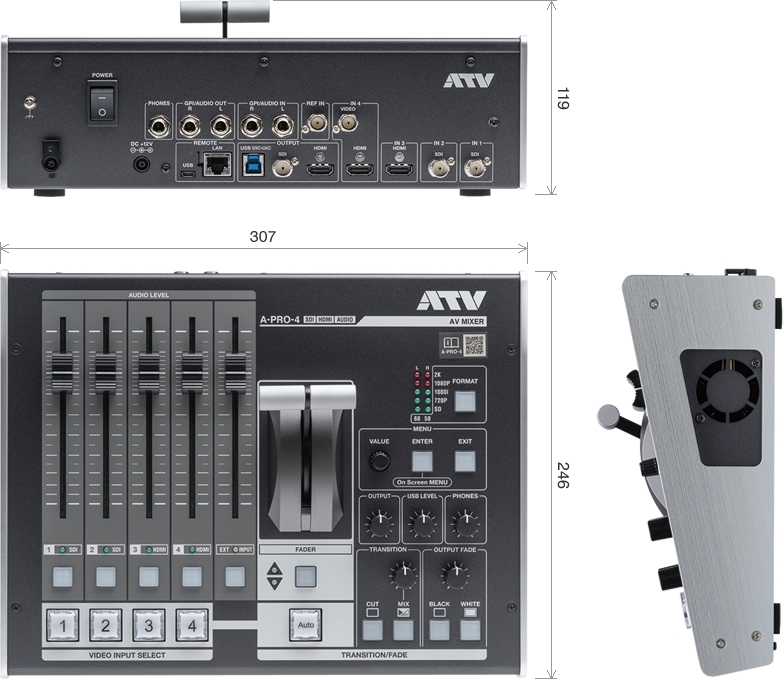

Size
The specifications and/or appearance of this unit are subject to change without prior notice.
